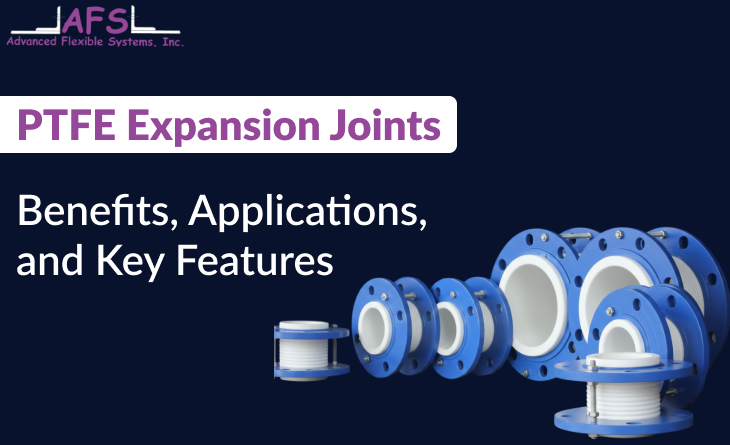

PTFE Expansion Joints
Expansion Joint
PTFE expansion joints are now a crucial component of modern industrial piping systems. Due to their unique properties, such as chemical resistance, flexibility, and durability, these joints are suitable for diverse industrial applications. Polytetrafluoroethylene (PTFE) is a high-performance fluoropolymer, known for its extreme resistance to corrosion, high temperatures, and harsh chemicals. It is a semi-crystalline fluoropolymer used in varied industries. For example, it is commonly used as a non-stick coating for pots and pans. It is also used in high-tech medical applications. The expansion joints made up of  Polytetrafluoroethylene are also used in the automotive, chemical, and electrical fields. These are also found in steel and PTFE-lined steel pipelines. They are ideal for plastic and FRP pipelines. Most of the time, these expansion joints are made of either pure PTFE bellows or a mix of rubber expansion joints with PTFE on the outer surface.

Key Benefits of PTFE Expansion Joints

Chemical Resistance

PPTE is impervious to a wide array of corrosive chemicals, acids and solvents. This resistance makes PTFE perfect for aggressive chemical processing environments, enduring durability and reliability.

Thermal Stability

With a broad temperature range, PTFE bellows are capable of withstanding extreme temperatures without losing their structural integrity. This thermal stability makes them significant for applications where temperature fluctuations are common.

Flexibility

PTFE bellows joints have unmatched flexibility and expansion capabilities. They are capable of accommodating various movements and vibrations. This quality makes them ideal for systems requiring compensation for thermal expansion and contraction.

Non-Stick Properties

PTFE’s natural non-stick characteristic ensures that substances do not adhere to the surface of the bellows. This property helps in minimising contamination and ensures easy and rapid cleaning.

Durable and Long-Lasting

PTFE bellows are engineered for a long life span, even in demanding conditions. They resist wear and tear, contributing to reduced maintenance costs.

High-Temperature Expansion Joint Specification (Up to 600°F)

Property

Specification

MaterialHigh-Temperature Modified PTFE (PTFE Composite)
Temperature Range-200°C to +315°C (-328°F to +600°F)
Chemical CompatibilityExcellent resistance to corrosive chemicals, acids, solvents, and oxidisers
FlexibilityHigh flexibility with strong expansion and contraction capability
Surface FinishSmooth, non-stick PTFE surface for minimal adhesion
Pressure RatingDepends on design and size (typically up to 150 PSI, custom options available)
Movement AccommodationAxial, lateral, and angular movement capability
DurabilityLong service life, high corrosion and fatigue resistance

Common Applications of PTFE Expansion Joints

PTFE expansion joints are used in diverse applications such as
  • Pharmaceutical production lines, which require ultra-clean materials that don’t react with each other
  • Wastewater treatment plants that handle fluids with a high or low pH
  • Processing food and drinks, where it is crucial to keep things clean
  • Power plants that deal with harsh chemicals and thermal expansion
  • The pulp and paper industries
  • Aerospace and electronics manufacturing use PTFE extension bellows as they ensure precision, along with reliability
  • Most corrosive substances, such as acids, bases and solvents, are inert to PTFE, so aggressive fluids can be safely transported using PTFE expansion  joints
In conclusion, PTFE expansion joints help keep equipment safe, improve safety, and keep systems running well in all of these settings.

Get in Touch with Advanced Flexible System Inc.

When it comes to expansion joints, quality and precision can never be compromised. At Advanced Flexible System Inc., we have built a reputation for being one of the most trustworthy metal bellows manufacturers by combining advanced technology with strict quality control. Our manufacturing capabilities include a complete range of fluoropolymer expansion joints, fabric expansion joints  and rubber expansion joints for pipes, lined in PTFE for transferring chemicals, strong acids, corrosives or other hazardous materials. These lining covers all wetted surfaces in the bellows and flange areas, offering unparalleled resistance to almost all chemicals.
